3D LASER LINE PROFILERS
Advancing Quality and Productivity with 3D Sensor Technology
AUTOMATE. INSPECT. OPTIMIZE.
Automation is driving factories to be smart.
The all-in-one 3D sensor for all your 3D scanning and inspection needs.
PART & COMPONENT
ASSEMBLY
INSPECTION
Verify Correct Adhesion, fastening gap & flush, and more.
PRODUCT FINISH AND PACKAGING INSPECTION
Verify Correct Surface Finishing, Sealing, Filling and more.
Polyga as the official distributor of LMI Technologies accross Western Canada brings together the all-in-one 3D smart sensors trusted worldwide for automated inline inspection.
Gocator combines 3D scanning, measurement and control in a single device, with no external PCs or controllers required. This efficient design paired with high-performance functionality makes Gocator easy to integrate into existing inspection systems—minimizing system cost and maximizing product quality and throughput.
All Gocators are factory pre-calibrated so users can immediately set up the sensor via a web browser and configure functions such as exposure, triggering logic, dimensional measurement tools and communication method.
Applications

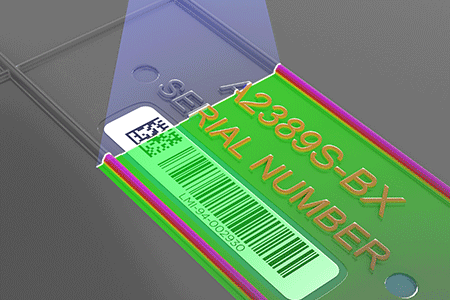

Assembly Inspection
Optimization

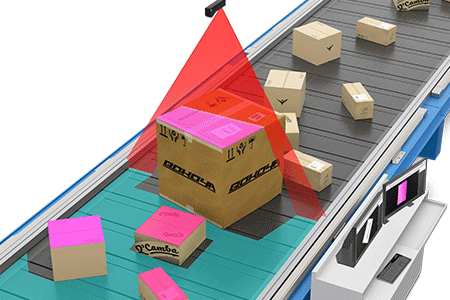

Pick and Place

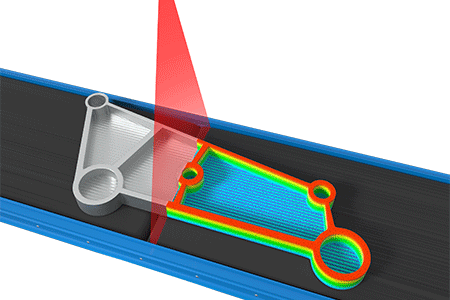

Surface Inspection
Find the Right 3D Profiler For Your Application
Contact Us

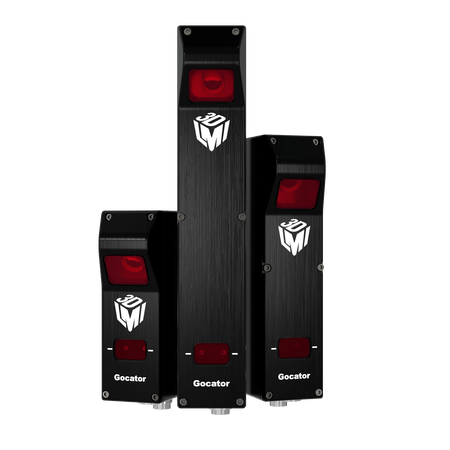

Gocator 2100 Series
Low Cost, Entry-Level Line Profilers for Basic Inline 3D Inspection
- Handles all of your basic quality inspection needs
- VGA imager, 640 points per profile resolution
- Field of view up to 1260 mm
- Measurement range up to 800 mm
Gocator 2300 Series
Workhorse Line Profilers for Robust Inline 3D Inspection
- Handles a wide range of applications
- Megapixel imager, 1280 points per profile resolution
- Field of view up to 1260 mm
- Measurement range up to 800 mm

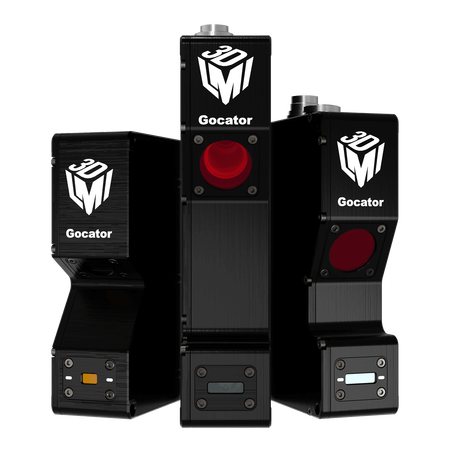

Gocator 2400 Series
Ultra High-Resolution Line Profilers for Advanced Inline 3D Inspection
- Handles difficult targets such as micro-features on small parts in high-speed applications
- 2-Megapixel imager, up to 1940 points per profile resolution
- Field of view up to 2000 mm
- Measurement range up to 1525 mm

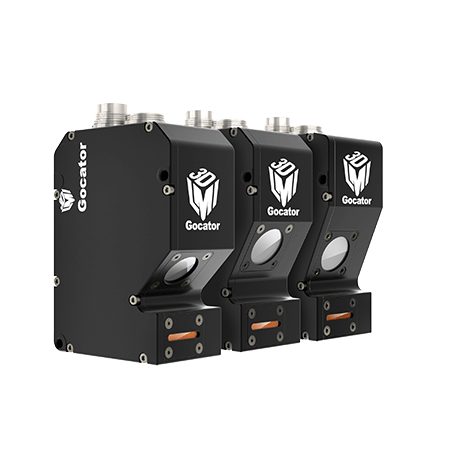

Gocator 2500 Series
Ultra High-Speed Line Profilers for Small Parts 3D Inspection
- Ideal for fast-moving inline inspection systems
- 2-Megapixel imager. Up to 1920 points per profile resolution
- Scan, measurement, and control at up to 10 kHz
- Field-of-view up to 100 mm
- Measurement range up to 80 mm

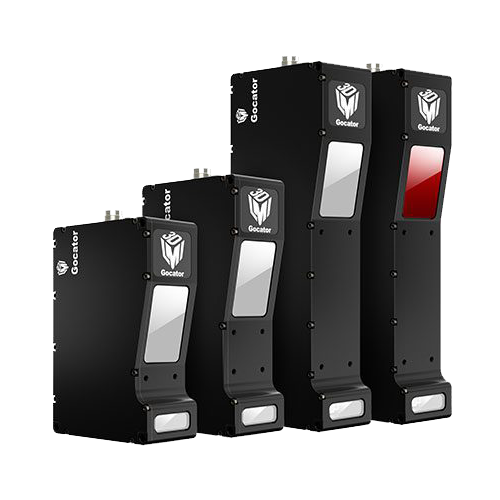

Gocator 2600 Series
4K Resolution Smart Sensor Laser Profilers to Measure Microscopic or Larger Objects
- Native Multi-sensor Alignment, Networking Support and On-sensor Measurement
- 9-Megapixel imager. Up to 4200 points per profile resolution
- Field-of-view up to 2000 mm
- Measurement range up to 1550 mm

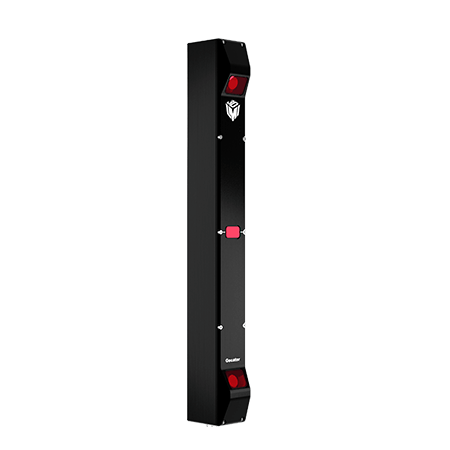

Gocator 2800 Series
Dual Triangulation Line Profilers for 3D Inspection of Large Objects
- Two cameras maximize scan coverage and minimize occlusions
- For applications such as primary log scanning
- Megapixel imager, 1280 points per profile resolution
- Field of view up to 1260 mm
- Measurement range up to 800 mm
- Available in single point profile, line profile and snapshot technologies
- Choice of 2M, 3R, and 3 laser classes
- Open source SDK for custom application development
- Gocator Development Kit (GDK) for custom firmware development
- Emulator for simulation ofpre-recorded data sets

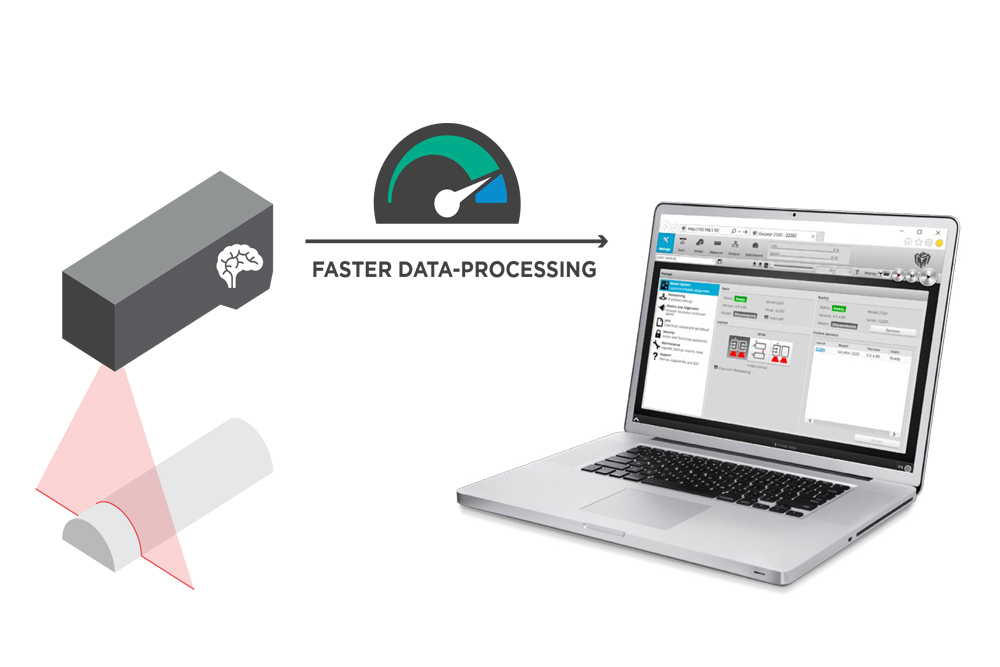

- Leverage the power of a PC with the Gocator Accelerator
FLEXIBLE

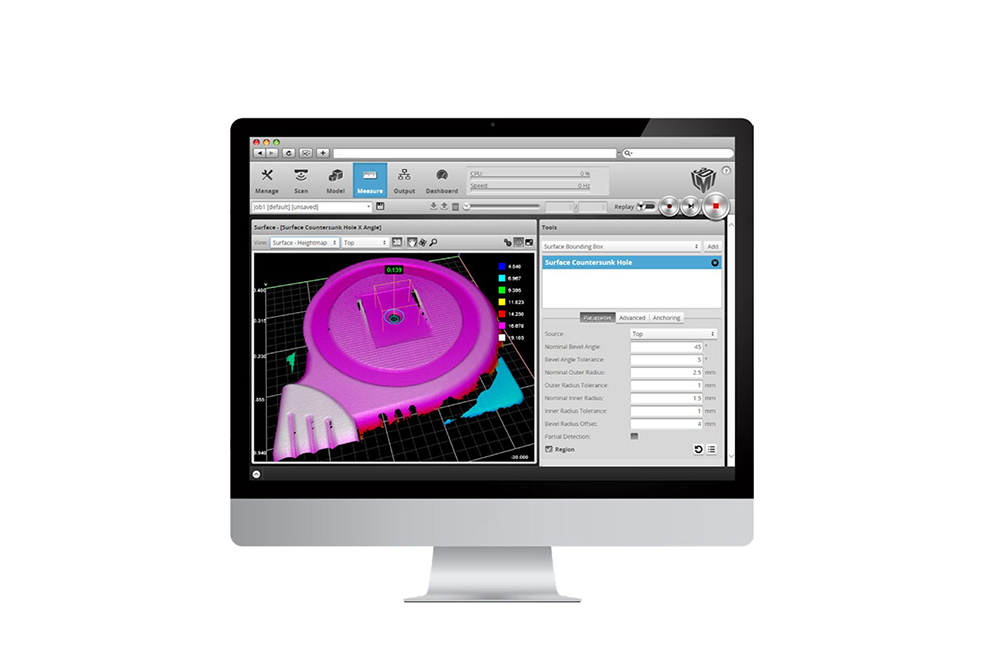

- Built-in web server, no separate software required
- Easy-to-use, intuitive, multi-language interface
- View real-time data on any computer, any OS
- Built-in measurement tools, no coding necessary
- Easy setup allows real 3D measuring in minutes, not days
- Tag and track parts for sorting and rejecting defects right from the sensor
- Use as a single sensor, dual sensor system, or scale up to a network of sensors
- Measure profiles or volumes and detect surface patterns all with the same sensor
