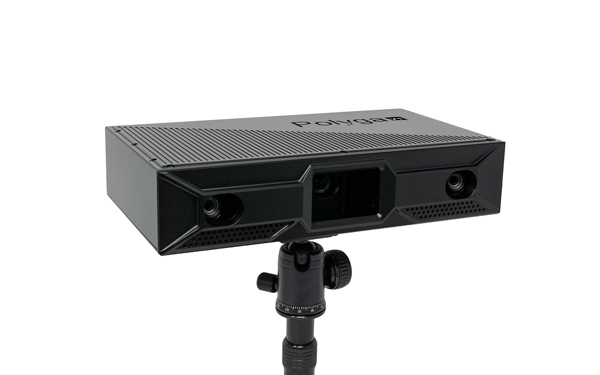

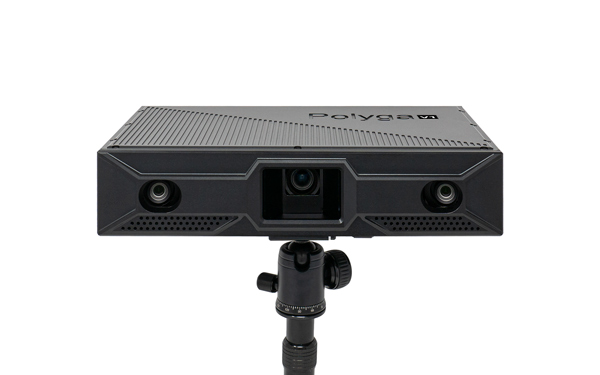

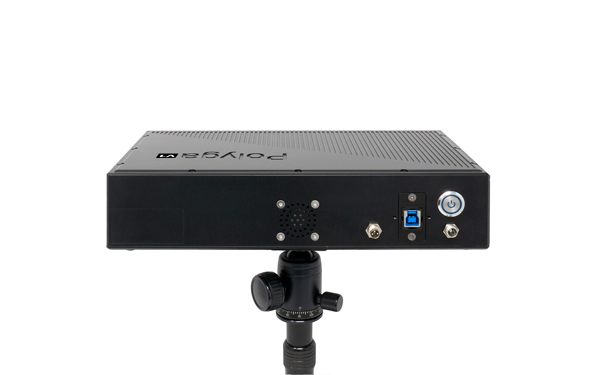

Polyga Vision V1
Polyga’s Vision V1 is a high resolution, ultra accurate, high-speed 3D camera for industrial computer vision applications. The V1 is packaged in a rugged enclosure that is ready for integration into your 3D vision application.
Product Description
- Type: High resolution 3D Vision Camera
- Dimension (mm): 58 x 270 x 160
- Software: Flexscan3D or SB SDK (C/C++) for 3D capturing and post-processing
Technical Specifications
- Field of view (mm):Area or volume the scanner can “see” at one time 333 x 230 – 428 x 330 mm
- Point-to-point distance (mm):Distance between two points in a 3D model 0.6mm or better
- Accuracy: Closeness of a 3D measurement to the true value80 micron
Captures every detail
Ultra high resolution 3D point clouds or meshes. The V1 delivers industry leading accuracy and and resolution using our high speed structured light technology. With a depth acuracy of 80 microns and point spacing of 0.6 mm the V1 lets you see and measure the world like never before.
Ready for Automation
Designed for industry, the Vision V1 can be easily mounted onto robotic arms and assembly lines. It’s ready for automated applications anytime with plug-and-play connectivity. The sensor’s compact size allows it to be integrated anywhere.
Factory Calibrated
High quality industrial calibration methods for the most accurate results.
Accuracy
Provides up to 4.5 million points every second with an accuracy of up to 80 microns
Color
Captures high quality texture data for critical vision applications.
Easy Integration
Connect to your computer easily over USB 3.0.
High-Speed Camera
Captures high quality data with framerate of 15 FPS.
Polyga’s SB SDK is a powerful 3D C/C++ software library for acquiring 3D scan data at high speeds and in real time. Directly transfer meshes or point clouds into your application using our high performance interface.
Professional and Accurate Results

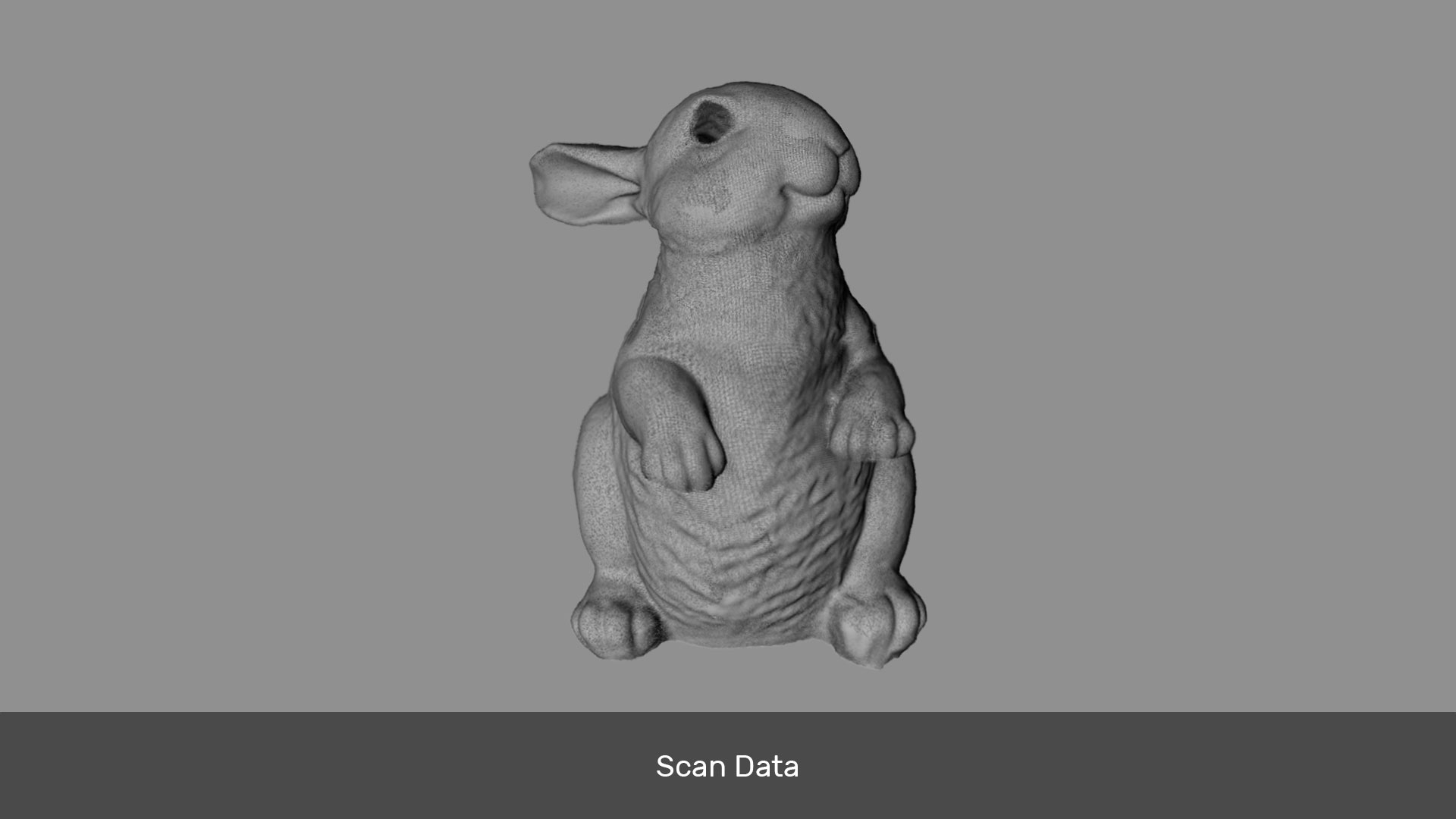

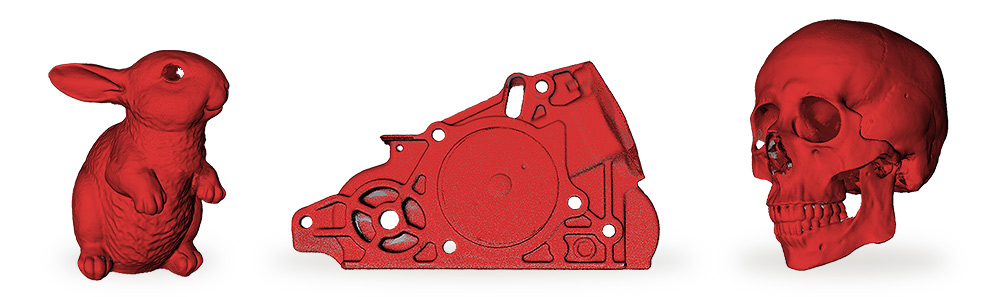

Turn scan data into high-quality point clouds. The Polyga V1 captures exceptional 3D image quality for your 3d models and surface inspection applications.
Captures accurate point clouds in motion
The Vision V1 captures high-resolution, high-accuracy 3D images of real world objects in motion. Acquire point clouds or meshes directly to your application in real time.
Applications
Robot Mounted 3D vision
Pick and Place Applications
3D Vision Reasearch and Development
Machine Learning
Surface Inspection
Medical Imaging
Automated Part Inspection
